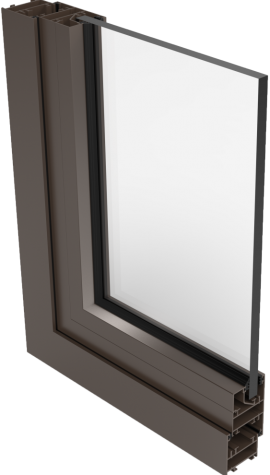

The EC45 system is a casement system designed for the mid-sized openings and doors. This, being a beaded system with crimped corners, requires less maintenance and is durable in long use.
| SYSTEM CHARACTERISITICS |
|---|
| Glazing - 5, 6, 11.52, 12, 20, 24mm |
| DIMENSIONS (in mm) | ||
|---|---|---|
| Face | Depth | |
| Frame | 46 | 126 |
| Sash | 80 | 55 |
| Interlock | 80 | 55 |
| SASH LIMITATIONS | ||
|---|---|---|
| Height | 3300mm | |
| Width | 2000mm | |
| Weight | 300kgs | |
